River NEPTUNE VHF antenna

River NEPTUNE VHF antenna

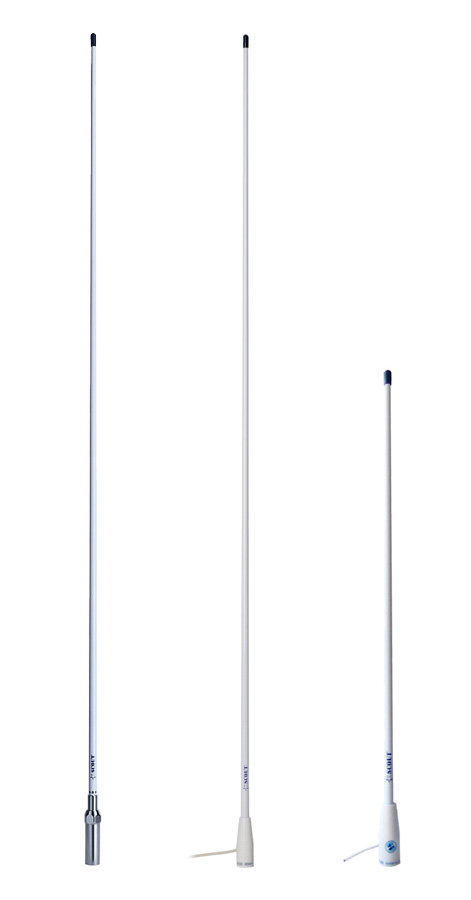

River NEPTUNE VHF antenna, presented with a series of 3 antennas NEPTUNE - AB, NEPTUNE - 1.5 NEPTUNE - 0. 7. The antennas are suitable for most river VHF radiostations, as reception antennas. Developed with technology of SCOUT to work in the river between the Russian Federation (300-336.6 MHz). By manufacture with  high quality materials that ensure durability, reliability and stability. Antennas are certified by the Russian River Register. Just antenna NEPTUNE  are certified by the international standard IC67, which ensures high performance in an unfavorable environment due to waterproof, airtight construction.
River aerial NEPTUNE VHF, presented a series of 3 antennas NEPTUNE - AB, NEPTUNE - 1.5 NEPTUNE - 0. 7. The antennas are suitable for most river VHF radios, as Reception. Developed with technology zapotentovannyh SCOUT to work in the river between the Russian Federation (300-336.6 MHz). By manufacture high quality materials that ensure durability, reliability and stability. Antennas are certified by the Russian River Register. Just antenna NEPTUNE  are certified by the international standard IC67, which ensures high performance in an unfavorable environment due to waterproof, airtight construction.



  NEPTUNE - AB NEPTUNE - A 1.5 NEPTUNE - A 0.7
Range 300-336.6 MHz 300-336.6 MHz 300-336.6 MHz
Resistance 50 ohms 50 ohms 50 ohms
Wavelength 1/2  ? 1/2  ? 1/2  ?
Standing wave ratio <1.2: 1 <1.2: 1 <1.2: 1
Orientation Vertical Vertical Vertical
Strengthening 3 dB 3 dB 3 dB
Max power 50 W 50 W 50 W
Grounding there is there is there is
Pintle Fiberglass Fiberglass Fiberglass
Coupling Chrome-plated brass Reinforced Nylon Reinforced Nylon
Connector SO 239 PL 259 PL 259
Fixing Thread 1 'X14 Thread 1 'X14 Thread 1 'X14
Length 1.5 m 1.5 m 1.5 m
Weight 0.45 kg 0.4 kg 0.3 kg
