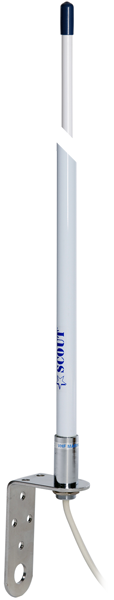

VHF sailboat antenna KM series
Designed specifically for sailing ships VHF antenna SCOUT series KM combine lightness, elegance and flexibility, due to the special design and high-quality stainless steel whip. Due to its convenient bracket antenna installation is quick and easy.
VHF antenna SCOUT series KM for a classic sailing ships, absolute water resistance, resistance to extreme environmental conditions and atmospheric influences. Special style VHF antenna SCOUT series KM fits perfectly with the design of the boat.
| KM - 3 | KM - 32 | KM - 3F | KM - 3A | KM - 140 | |
| Range | 156 - 162 MHz | 156 - 162 MHz | 156 - 162 MHz | 156 - 162 MHz | 152 - 162 MHz |
| Resistance | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
| Wavelength | 1/2 ? | 1/2 ? | 1/2 ? | 1/2 ? | 5/8 ? |
| Standing wave ratio | < 1,5 : 1 | < 1,5 : 1 | < 1,5 : 1 | < 1,5 : 1 | < 1,5 : 1 |
| Orientation | Vertical | Vertical | Vertical | Vertical | Vertical |
| Strengthening | 3 dB | 3 dB | 3 dB | 3 dB | 4 dB |
| Max power | 50 W | 50 W | 50 W | 50 W | 100 W |
| Grounding | there is | there is | there is | there is | there is |
| Pintle | Fiberglass | Stainless steel | Fiberglass | Stainless steel | Fiberglass |
| Connector | SO 239 | SO 239 | SO 239 | SO 239 | |
| Fixing | Stainless steel | Braket | Stainless steel | Stainless steel | Diameter 30 mm |
| Length | 1,5m | 1,0 m | 0,9 m | 1,0 m | 1,0 m |
| Weight | 0,30 kg | 0,23 kg | 0,23 kg | 0,23 kg | 60 kg |
| Coupling | Reinforced Nylon |
Available for order
