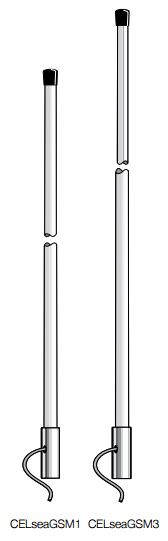

Omnidirectional antenna cell CELseaGSM1 and CELseaGSM3
Omnidirectional antenna cell CELseaGSM1 and CELseaGSM3 - work in cellular communication system GSM900. Suitable for all types of vessels. They are dipole antennas.
CELseaGSM1 and CELseaGSM3 set using the mounting thread 1 'X14. They have cable with 20ft RG58C / U length of 6 meters.
The antenna is made of durable glass fiber, which is resistant to the occurrence of galvanic corrosion and perfectly used to work in harsh environments. Radiating elements and CELseaGSM1 CELseaGSM3 made of copper and copper alloys.
Specifications:
|
|
GSM1 | GSM3 |
| Range | 890-960 MHz | 890-960 MHz |
| Resistance | 50 ohms | 50 ohms |
| SWR | 1.5: 1 | 1.5: 1 |
| Orientation | Vertical | Vertical |
| Gain | 0/3 dB | 3/6 dB |
| Max Power | 50 W | 50 W |
| Material | Glass | Glass |
|
Temperature range |
-55 To +60 ° C | -55 To +60 ° C |
| Degree of protection | IP66 | IP66 |
| Length | 0.66 m | 1/15 m |
| Weight | 0.53 kg |
0.8 kg |
