The omni-directional dipole antenna CX3 5-8 AIS AC Marinne
The omni-directional dipole antenna CX3 5-8 AIS - is designed for high-power and high-speed boats, fishing boats, merchant ships. The gain of 3 dB. Suitable for use on the high seas.
The radiating antenna elements are made of brass. The housing is made of high quality fiberglass, which copes with adverse environmental conditions. CX3 5-8 AIS is resistant to galvanic corrosion.

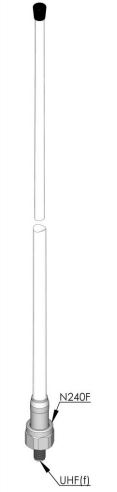

CX3 5-8 AIS is installed using mounting N240F - Fixing nut threaded connection 1 1 / 4h11. With the O-ring and the rubber cap. Material: chrome-plated brass and rubber.
As for the top support is suitable N200F, but must be ordered separately.
N200F - Adjustable upper support. Provides distance of 203 mm from the surface of the bulkhead in horizontal mounting.
Specifications:
- Frequency range - 160 -164 MHz
- Capacity - 50 ohms
- Power -100 W
- Strengthening - 3/6 dB
- SWR - <1.5: 1
- Polarization - vertical
- Closed DC
- Length - 2.63
- Weight - 0.6 kg
- Material - Fiberglass
- Temperature Range - -55 to +60
- Degree of protection - IP66
Available for order
