CELsea 1 / 1A / 3 / 3A / 3S AC Marinne

CELsea 1 / 1A / 3 / 3A / 3S  AC Marinne
Available for order

CELsea 1 / 1A / 3 / 3A / 3S AC Marinne

to order
Call our sales manager
Antennas 1/1 A / 3 / 3A / 3S series CELsea - are marine antenna for use in mobile communication. They are used in two-way telephone communication GSM850 on board.

Rugged antenna CELsea 1 / 1A / 3 / 3A / 3S ensures reliable performance in all weather conditions. During the production of antennas used copper and alloy edny for internal components.

CELsea 1 / 1A / 3 / 3A / 3S easy to install. Installation is made with a special attachment with thread 1''h14.

Specifications:

Технические характеристики:

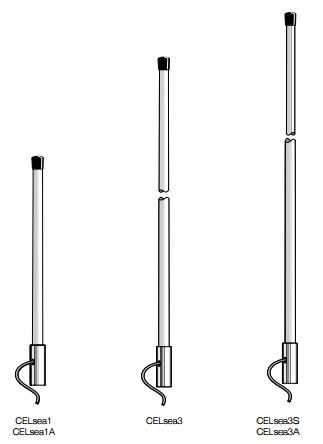

  CELsea 1 CELsea 1A CELsea 3 CELsea 3A Celsea 3S
Frequency 825-890 MHz 806-866 MHz 825-890 MHz 860-866 MHz 825-890 MHz
Impedanse 50 ohm 50 ohm 50 ohm 50 ohm 50 ohm
DC DC DC DC DC DC
WSVR < 1.5 : 1 < 1.5 : 1 < 1.5 : 1 < 1.5 : 1 < 1.5 : 1
Polarization Vertical Vertical Vertical Vertical Vertical
Gain 0/3 dB 0/3 dB 3/6 dB 3/6 dB 3/6 dB
Power 100 W 100 W 100 W 100 W 100 W
Cabble RG58C/U 6m RG58 C/U 6m RG58 C/U 6m RG58 C/U 6m RG58 C/U 6m
Lenght 0.5 m 0.65 m 2.65 m 2.65 m 1.2 m
Weight 0.34 kg 0.34 kg 0.8 kg 0.8 kg 0.8 kg
IP IP 66 IP 66 IP 66 IP 66 IP 66
