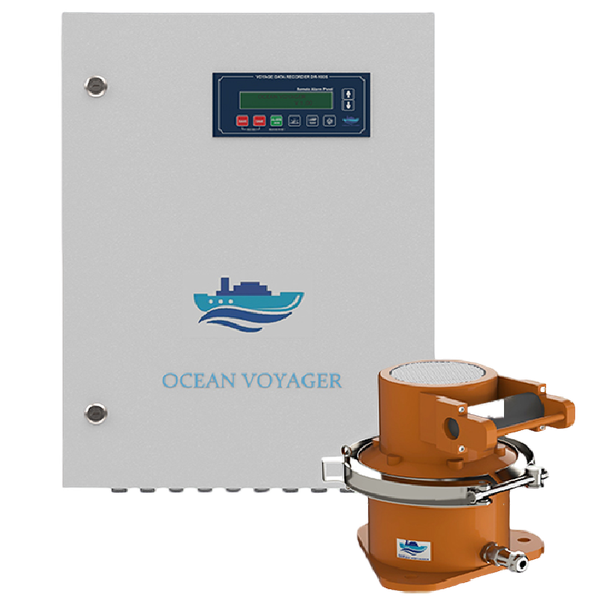

Voyage data recorder RDR-K1

The RDR-K1 flight data logger is designed to collect, convert and store various types of information (voice, parametric, radar) for further investigation of the causes of the ship's failure. The information is recorded on a protected ZN-K1 drive, while a backup copy is created on a removable drive that is located in the BSPI-K1 data collection and conversion unit.

The data that is registered on the protected drive is displayed using the program for reproducing and processing DDR information. To view the data of other digital channels, there is a possibility of having several windows of this type.

Specifications:

• Reception of digital information in the form of a serial code in accordance with IEC 61162-2, coming from ship equipment:
• Number of reception channels - 12;
• The transfer rate is 38400 bps.
• Reception of digital information in the form of a serial code in accordance with IEC 61162-1, coming from ship equipment:
• Number of reception channels - 4;
• The transfer rate is 4800 bps.
