Side Light type 400/410/431

Side Light type 400/410/431
Side Light type 400/410/431
Available for order

Side Light type 400/410/431

to order
Call our sales manager
Color:
  • Green
  • Red
  • White
Purpose:
  • Anchor Light
  • Anchor Light hoistable
  • Masthead Light
  • Side Light
  • Signal Light
  • Signal Light hoistable
  • Stern Light

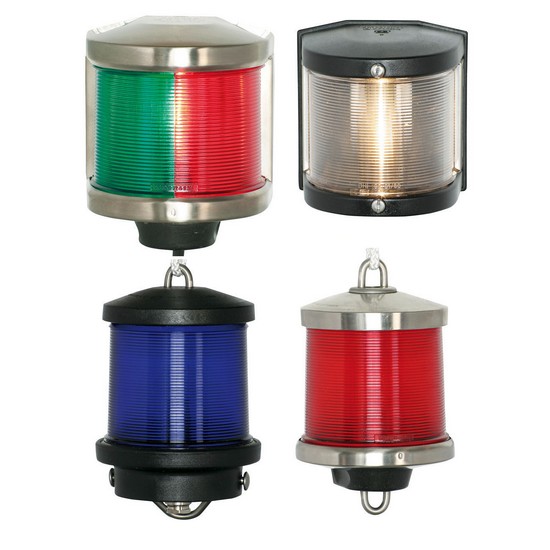

Signal - distinctive lamps of type 410/431/400   with incandescent lamp in a stainless steel case. Suitable for operation on vessels up to 20 meters in length. A distinctive feature is the compact size and simple aesthetic design. The casing is made of shockproof, corrosion-resistant, resistant to sea water, ultraviolet radiation, non-magnetic stainless steel (degree of protection IP56). The Fresnel lens is a shockproof polycarbonate.

The source of light are incandescent navigation lights with a BAY15d socket with a power of 10W for any white light, except top and 25W for other lights. Lamps are not included in the scope of supply

  • Operating voltage: 12V, 24V
  • Mounting: 410 - fixed behind the back wall, 431 - stationary on the base, it is possible to complete with a flat or angled mounting bracket, a bracket for fastening to the mast, 400 -
  • The lanterns are connected through a cable entry made of stainless steel M10 (for cable ø4-6.5mm) to two screw terminals located inside the lamp. Installation and connection instructions are in each box
  • Approval: BSH, GL, UL 1104, MED, RMRS, PPP
  • The lanterns are controlled using a push-button or touch-panel control panel.
