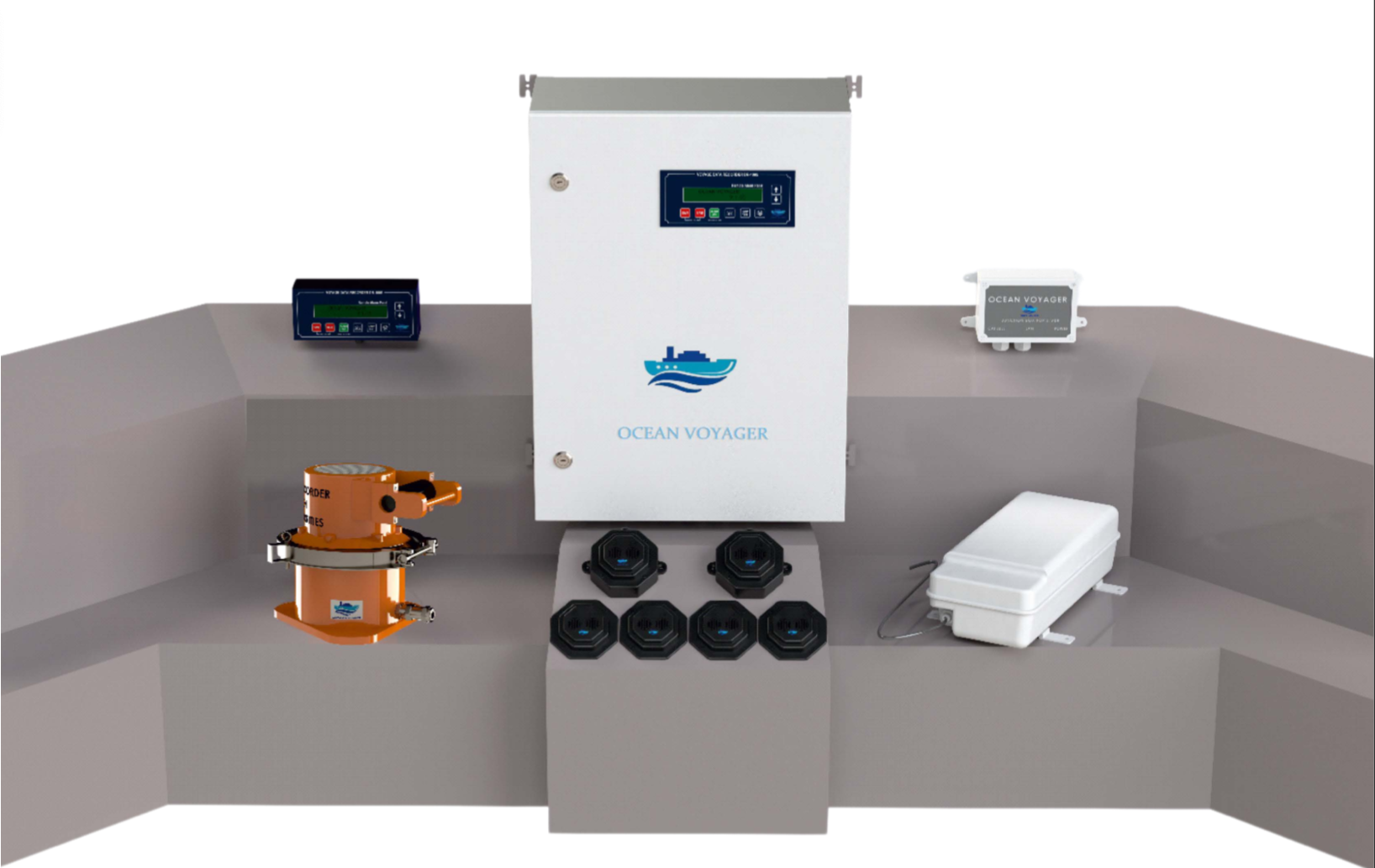

OCEAN VOYAGER DR-100S

The DR-100S is the initial product in the S-VDR line from Ocean Voyager, which stands out for its convenient installation and maintenance. This voyager data recorder is designed to record information about the navigation of a vessel, including information about its course, speed, location and time, in accordance with the standards of the International SOLAS Convention and resolution MSC.232(82).

Main Features:

Remote control: monochrome screen, built-in speaker, buttons, backlight;
Data from the indicators: date, time, vessel location, speed, course, echo sounder, AIS;
Audio: microphone, VHF radio station;
Visualization: Radar, ECDIS;
Recording time:

• Fixed capsule: 24 hours (128 GB);
• Free-floating capsule: 24 hours (64 GB);

Memory capacity:

• Memory card: 128 GB;
• External storage: 4 hours (32 GB);

Recording intervals:

• Sensors: 1 second (depending on the type);
• Audio: 1 file per minute;
• Images: 1 frame every 15 seconds;
• Data transfer ports: IEC61162-1 (4800 bps), IEC61162-2 (38400 bps), LAN (IEC61162-450);

Entrances:

• Microphones: 6;
• VHF/radio stations: 2;
• Radar/ECDIS: LAN or VGA/DVI/HDMI/YPbPr.

Supply voltage:

• Data acquisition unit: AC 100-240V, 5A, 50/60Hz;
• Remote control and microphones: DC 24V;
• Capsules: DC 24V (fixed and free-floating).
