Standard |
IMO resolution A.694 ( 17 ) ( 1991 ) IMO resolution A.803 ( 19 ) ( 1995 ) IMO resolution MSC.68 ( 68 ) ( 1997 ) IMO MSC / Circ.862 ( 1998 ) IEC 60945 Ed.4.0 ( 2002-08 ) |
|
Display |
5 inch TFT color LCD, 800 × 480 dots ( WVGA ), Brightness: 1000 cd/m2 |
|
Communication modes | Simplex and semi-duplex press talk system | |
Transmission frequency | Simplex / semi-duplex : 155.000 - 163.500 MHz | |
Reception frequency | Simplex / semi-duplex : 155.000 - 163.500 MHz | |
Antenna output power | 6 - 25 W ( when reducing : 0.5 - 1 W ) | |
Modulation method | FM / FSK | |
Type of emission |
Radiotelephone communications : F3E / G3E DSC / ATIS : F2B / G2B |
|
Channel spacing | 25 kHz | |
Frequency accuracy | ±10 × 10-6 or less | |
Antenna impedance | 50 Ω unbalanced | |
DSC CH70 recevier |
Receiver : built in Frequency : 156.525 MHz |
|
Number of channels |
ITU : Maximum 65 ch USA : Maximum 65 ch Canada : Maximum 65 ch Inland waterway : Maximum 65 ch Private : Maximum 200 ch ( channel steps : 25 kHz, 12.5 kHz, 10 KHz ) Weather : Maximum 10 ch Memory : Maximum 10 ch |
|
Power supply voltage | 24 VDC : 4.5 A | |
Power consumption ( 24 VDC input ) |
25 W when transmitting : Maximum 4.5 A / 108 W When receiving : Maximum 1.5 A / 36 W |
|
Interface | ||
---|---|---|
Ports |
IEC 61162 - 1 : 1 port For GPS information input IEC 61162 - 1/2 : 1 port For AIS information input, brightness control and BAM communication LAN ( IEC 61162 - 450 compliant ) : 1 port For radar, ECDIS, RMS ( VDR ), GPS, AIS, DMC, brightness control, printer and BAM communication Voice line output ( 600 Ω, balanced ) : 1 port For VDR / S-VDR connection Voice line output ( 600 Ω, unbalanced ) : 1 port For external speaker connection |
|
Audio output |
Built-in speaker ( 4 Ω ) : 6 W or more Handset ( 150 Ω ) : 1 mW or more |
|
NMEA0183 version | Ver1.5 / 2.0 / 2.3 | |
NMEA0183 input sentence | ALR, GGA, GLL, GNS, RMC, VDM, VDO, ZDA | |
Environment | ||
Operating temperature | -25℃ to +55℃ | |
Storage temperature | -40℃ to +80℃ | |
Waterproofing |
Marine VHF radiotelephone : IP56 Handset : IP66 VHF controller : IP56 |
JRC JHS-800S
Certificate:
-
RMRS
Available for order
The JRC JHS-800S is an advanced GMDSS and worldwide compliant VHF maritime radiotelephone designed for Class A DSC to meet the latest installation requirements. Its control screen consists of a 5 inch high brightness LCD color touch display. The optimized button layout allows users to intuitively understand how to operate the device.

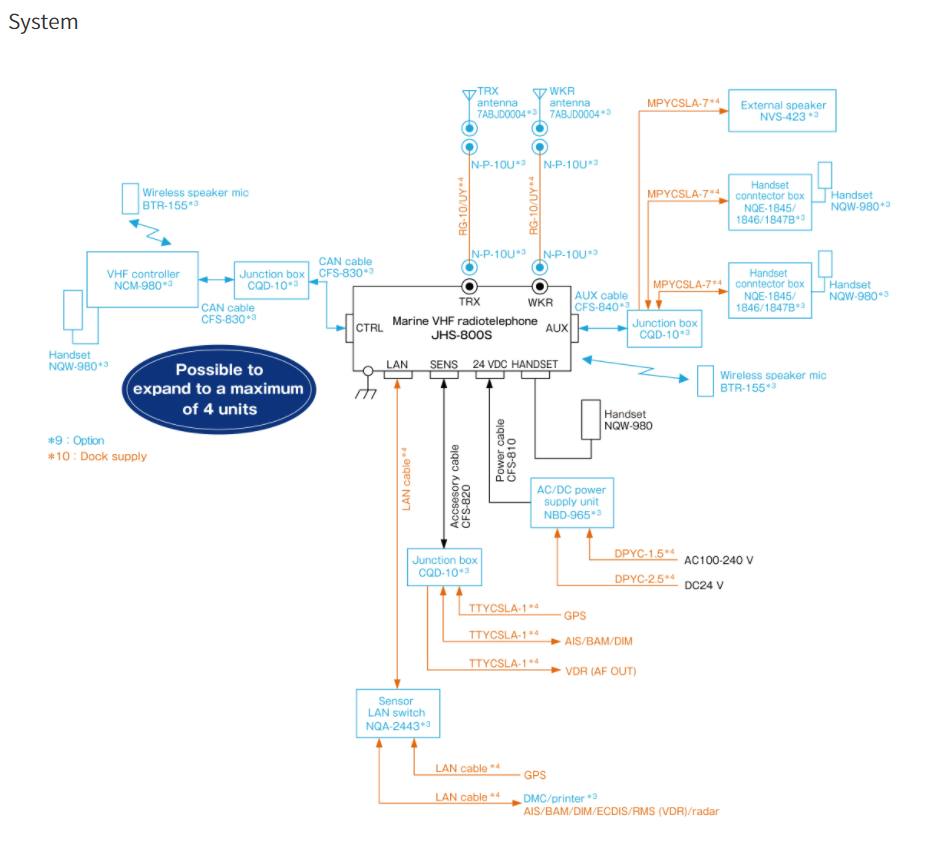

Although the JHS-800S is a stand-alone marine VHF radiotelephone consisting of a radio part and a control unit, it can also be controlled remotely from remote areas up to 100 m using the combined use of the NCM-980 controller (optional).
The JRC JHS-800S marine radio station is equipped with a self-diagnosis system, allows you to play calls from memory, as well as record them in real time.
Although the JHS-800S is a stand-alone marine VHF radiotelephone consisting of a radio part and a control unit, it can also be controlled remotely from remote areas up to 100 m using the combined use of the NCM-980 controller (optional).
The JRC JHS-800S marine radio station is equipped with a self-diagnosis system, allows you to play calls from memory, as well as record them in real time.
Specifications
