SAILOR 350 PSA 1/2

SAILOR 350 PSA 1/2
Available for order

SAILOR 350 PSA 1/2

to order
Call our sales manager

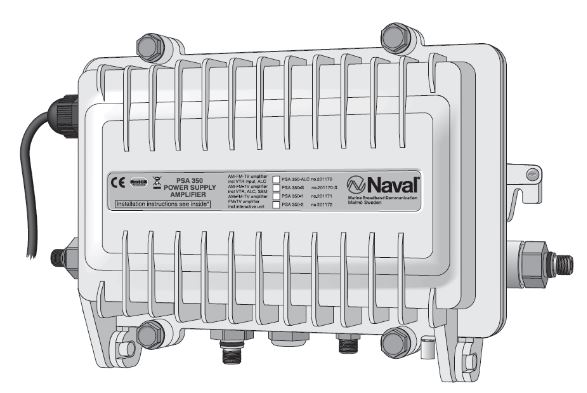

SAILOR PSA 350 1/2 - is a linear amplifier designed for distribution and amplification of radio and television signals. Additionally equipped with a connector RA-18, which allows the use of power in interactive systems. Meets the requirements of the use of amplifiers on ships.

Power SAILOR 350 1/2 with a low noise level, suitable for operation in harsh environments and at low input signal. Can work as a sub-amplifier, for example, for pay-TV

Different configurations of SAILOR 350 1/2

SAILOR 350 PSA 1/2

Technical characteristics:
  • Operating Temperature Range - -40 - + 55 ° C,
  • Humidity -  95%
  • EMC: EN 50083-2
  • Safety - EN 60065
  • Input voltage - 117/230 in the AC
  • Resistance - 75 ohms
  • Frequency - 0.1-30 / 40-890 MHz
  • Overall gain - 34 dB
  • Noise figure - 7 dB
  • Attenuation at 0.1-30 MHz - 0-13 dB
  • Attenuation at 40-890 MHz - 0-18 dB
  • Power consumption - 400 mA
