KW800-MPA AMI MARINE
KW800-MPA AMI MARINE - handheld device - is intended to provide all the necessary navigation information in real-time pilot. Prior ensures operation even during movement of the vessel.

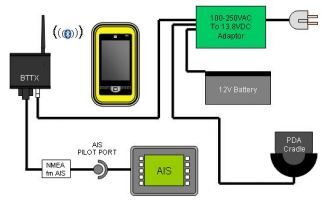

The principle of operation of the pilot device is to connect the ship's AIS and navigation data. Typically, the navigation data using information about the speed of the vessel. KW800-MPA has a wireless data transfer technology. Knowledge transmitter coverage - 100m. Due to the special provision programmnoiu snizhzhayutsya risks of getting false information from other vessels AIS, so you can avoid confusion and incorrect data revenues. The data is displayed graphically on the screen PDA.
Compact and lightweight KW800-MPA device - has its own power supply. Robust housing made of waterproof material, which is placed in his hand. To simplify data acquisition simply connect KW800-MPA directly to the ship's AIS speialny through connector.
The package includes:
- Waterproof and protective case.
- Docking station and power supply AC / DC
- Battery - 12 and 1 / h
- SSD memory card 512 Mb
- Adapter to connect to port B-039-01
- AIS data cable
Specifications:
- BLUETOOTH TX - unit:
- Power - 12
- Intensification of colors:
- Oranzhenvy - self-diagnostic / testing
- Green - more than 20 seconds - a willingness to work.
- Purple - within 10 seconds - search devices
- Blue - Work BTTX and PDA.
- Red - system failure.
Available for order
