MG5233 X-Band Magnetron

MG5233 X-Band Magnetron
Available for order

MG5233 X-Band Magnetron

to order
Call our sales manager
 MG5233 X-Band Magnetron operates at frequencies 9410 ± 30 MHz. Analog of E3566 and MAF1425B. This equipment is manufactured on the principle of maximum limits in contact with high voltage circuits and all high voltage circuits and terminals are hidden. Equipped with emergency button to turn off the power supply in the event of a device failure.
Specifications:                                                                MG5233 X-Band Magnetron
  • The operating frequency - 9410 ± 30 MHz
  • Maximum peak power - 8.0 kW
  • Clutch - UG-40B / U
  • (NATO 5985-99-083-0051 SN)
  • Cooling - natural
  • The indirectly heated cathode
  • Heater voltage - 6.3 V
  • Current heater - 6,3 V - 0,55 A
  • Weight - 0.7 kg
  • Mounting position - Any
  • Minimum gap - 50 mm
  • Anode current (peak value) - 6.0 10 A
  • Power consumption (peak) - 6.3 kW
  • Power consumption (average) - 2.5 W

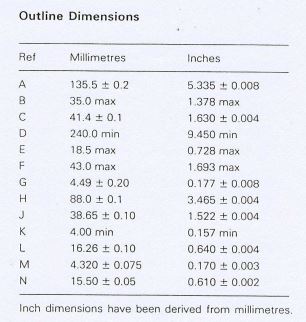

MG5233 X-Band Magnetron MG5233 X-Band Magnetron
