Каталог ЗИП KELVIN HUGHES (Часть 2)

I.Mk 7 Transceivers (S' & X' Band Downmast) CTX-A8 (X' Band), CTX-A9 (S' Band)

II.Multi Feature Display (MFD)

III. Navtex 2/2B (TLX-845060)

IV. Ninas Display (HRC-A13)

V. Nucleus 1 5000 & 6000 Display (HRC-A1, HRC-A2, HRC-A3, HRC-A4, HRC-A5)

VI. Nucleus 2 5000 Display (NNR-A22, NNR-A23, NNR-A24)



VII.  Nucleus 2 6000 Display (NNR-A1, NNR-A2, NNR-A3)

VIII. Nucleus 3 5000 Display (NNR-A62, NNR-A63, NNR-A64)

IX. Nucleus 3 6000 Display (NNR-A56, NNR-A57, NNR-A58)

X.  Radar Interswitch Unit & Transceiver Interswitch Unit NNR-A55(RIU), NNR-A66(TIU)

XI.  SART 9-1M (LO-KATA) SRT-1

XII. Soft Start Unit (CZZ-A14, CZZ-A14-2)

XIII. Voyage Data Recorder & Ancillery Items (VDR-A1)

XIV. Ships Security Alert System

  • Для того, чтобы сделать заказ на запчасти KELVIN HUGHES, обратитесь к менеджеру по почте sales@cirspb.ru или в сервисный отдел service@cirspb.ru
  • По вопросам обращаться по телефонам: в Санкт-Петербурге (+7 812) 679-09-10 и +79045531441,
  • в Петрозаводске (+7 8142) 57-80-30 и (+7 8142) 57-00-03.



Mk 7 Transceivers (S' & X' Band Downmast) CTX-A8 (X' Band), CTX-A9 (S' Band)

К началу

Серийный номер Наименование Изображение
45-646-603 Diode Limiter - SLX44 (NJS 6930) (JRC, X' Band)

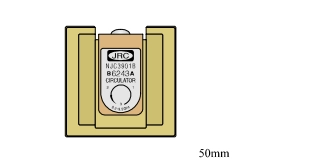

45-646-604 Circulator - (NJC 3901B) (JRC, X' Band)
45-646-605 Low Noise Module - (NJT 1946AK, X' Band) -
45-646-608 Limiter NJS6318, (S' Band)
45-650-0004-009 Fuse 8A (Antisurge) -
45-650-0007-001 FUSELINK, GLASS, 8 AMP -
45-677-124 POWER SUPPLY, TYPE MK4TX -
45-680-003 MAINS FILTER, 6A, TYPE 6ET1 -
45-683-158 FAN, TUBE AXIAL -
45-683-163 Fan Guard -
45-750-0008-001 CIRCULATOR, W/CG ''S'' BAND, E PLANE -
45-750-0009-001 FILTER, BANDPASS, 10mm, S BAND -
45-825-0007-001 Fan Guard -
CAE-A213 NOISE SOURCE & CABLE - F/S - BAND
CAE-A217 Low Noise Front End (LNFE), S' Band -
CTX-1408 Magnetron Support, MK7 -
CTX-A173 Tx CAVITY -

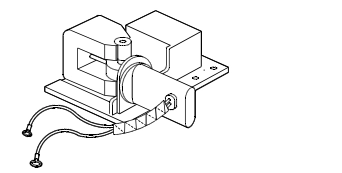

CTX-A309 MAGNETRON - 25kW S BAND (45-646-136 M1302LK NRJC)
CTX-A317 X' BAND MAGNETRON (MG 5437) -
CTX-A320 L. N. F. E. INTERFACE PCB -
CTX-A321 CABLE, I.F. -
CTX-A322 CABLE. +5V TUNE -
CTX-A323 LOW NOISE FRONT END - (LNFE) I/X BAND -
CTX-A346 MICROCONTROLLER PCB -
CTX-A356 MK7 Receiver PCB -
CTX-A364 Receiver Assembly, Mk 7 (Contains CTX-A356 Receiver PCB) -
CTX-A369 25kW FET Modulator -

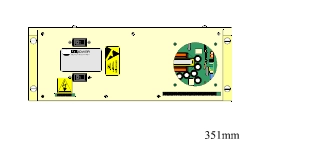

CTX-A370 Mk 7 Electronics Unit -
CTX-A374 Mk7 Tx, Common Items -
CTX-A379 FAN, Mk 7 Tx -
CTX-A380 RF Head, X' Band MK7 Tx -
CTX-A384 RF Head, S' Band MK7 Tx -
CTX-A385 CABLE, Rx TO LNFE -
CTX-A386 CABLE, RIBBON, Mk 7 Tx -

Multi Feature Display (MFD)

К началу

Серийный Номер Наименование Изображение
45-613-202 SWITCH - PUSH BUTTON MOMENTARY (DEGAUSS) (0041-2311)
45-613-203 SWITCH - PUSH BUTTON, SPDT, LATCHING (ON/OFF) (0041-2361)
45-615-164-06 FUSE - 1.25A 250V 5x20mm (S500) -
45-615-164-12 FUSE LINK - 2.5A 250V 5x20 mm (S500)
45-615-164-25 FUSE - 5A 5x20mm (S500)
45-621-1704 Lamp - 28V, MIDGET, GROOVE 6mm, STANDARD END (CM334)
45-676-361 FILTER - MAINS 10A 10ET1 120/250V 50-60Hz (F7313)

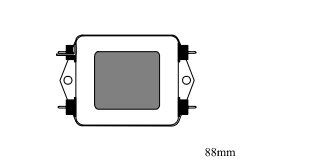

45-676-362 FILTER - MAINS 3A 3ET1 120/250V 50-60Hz (F7002)
45-677-107 POWER SUPPLY MODULE - 24V 2.5A (SIEMENS 6EP1332)

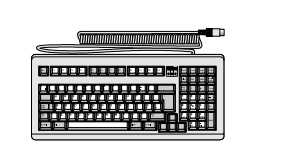

45-881-113 KEYBOARD - SMALL (G84-4100PAG/030)
45-910-135 POWER SUPPLY 200W - PROCESSOR (FS200401) -
45-910-429 AMALOGUE INTERFACE PCB (PCAD12/16H)
45-910-430 SERIAL INTERFACE PCB, RS232/422 (PCSER4-ARCOM)
45-910-519 ARCNET INTERFACE PCB -
45-910-520 SCS1 PCB -

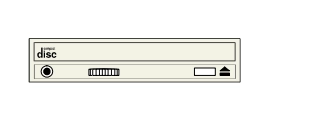

45-910-523 CD ROM DRIVE - SCSI (6000)
45-910-533 PROCESSOR PCB (MICROBUS 486DX MAT777) -
45-910-561 ISOLATOR MODULE - ANALOGUE (Rail Mount) -
45-910-576 UPS 220V (Merlin) -
45-910-596 HARD DISK DRIVE - 3.5 '' 4.3 Gb (replaces 45-910-134)
45-975-0072-001 3.5 Floppy Disk Drive -
HRC-A305 MODULE - NMEA -
HRC-A449-2 MAGNETIC SENSOR PCB (replaced by NNR - A536 for Commercial Eqpt)
HRC-A457 FAN-MONITOR COOLING 24V DC -
NNR-A111 MONITOR INPUT PCB
NNR-A115-2 MONITOR PSU PCB
NNR-A116 DEFLECTION PCB

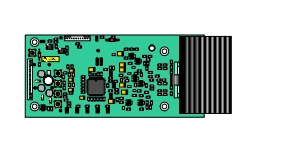

NNR-A117-2 VIDEO AMPLIFIER
NNR-A135 TUBEBASE PCB (use with CRT 45-647-199)
NNR-A166 MAGNETIC COMPENSATION 2 PCB (replaced by NNR-A536)
NNR-A225 CONTROL PCB -
NNR-A303 DAC/BLEED LEAD KIT (PCB)
NNR-A536 MAGNETIC AMPLIFIER PCB (6000) (replaces NNR-A166-* & A449-*) -
NNR-A638 MAGNETIC AMPLIFIER MOD KIT - (inc. NNR-A536, A628, A629) -
NNR-A849 Tracker Ball Kit -
VDR-A4 Data Interface Unit -
ZM-1823 HARD DISK DRIVE - 3.5'' DOS & Software installed (inc. 45-910-596)



Navtex 2/2B (TLX-845060)

К началу

Серийный номер Наименование Изображение
LNAX - A109 ANTENNA - ACTIVE WHIP (inc. bracket & Cable 20m 50 Ohm) -
TLX-14013 FUSE 2.5A (QUICK BLOW) -
TLX-14014 FUSE 200mA 20x5mm (QUICK BLOW) -
TLX-43007 PRINT HEAD M1220 (used on TLX-43006) -
TLX-540301 PAPER ROLL THERMINAL (SINGLE) -
TLX-690050 PROCESSOR PCB (NAVTEX 2B) -
TLX-690039 PRINTER DRIVE PCB (NAVTEX 1B) -
TLX-730009 SPEAKER LOOM -
TLX-730012 TRANSISTOR POWER 573/3-02 (NAVTEX 2) -
TLX-845077 Processor Dual PCB (Navtex 2B) -



Ninas Display (HRC-A13)

К началу

Серийный номер Наименование Изображение
45-546-1733-10 POT - 10K 1/4'' SPDLE -
45-612-9012 SWITCH - CONTACT ELEMENT, GOLD 350-888
45-613-202 SWITCH - PUSH BUTTON MOMENTARY (DEGAUSS) (0041-2311)
45-613-203 SWITCH - PUSH BUTTON, SPDT, LATCHING (ON/OFF) (0041-2361)
45-613-207 SWITCH - PUSH BUTTON SPDT -
45-613-4233 KEYSWITCH (RS 350-838) -
45-615-164-06 FUSE - 1.25A 250V 5x20mm (S500) -
45-615-164-12 FUSE LINK - 2.5A 250V 5x20mm (S500)
45-615-164-25 FUSE - 5A 5x20mm (S500)
45-621-1704 Lamp - 28V, MIDGET, GROOVE 6mm, STANDARD END (CM334)
45-677-107 POWER SUPPLY MODULE - 24V 2.5A (SIEMENS 6EP1332)
45-683-147 FAN - 24V DC -
45-881-109 TRACKERBALL -
45-881-113 KEYBOARD - SMALL (G84-4100PAG/030)
45-910-134 HARD DISC DRIVE - 3.5'' (MAXTOR 7171A) (Subject to avalability)
45-910-135 POWER SUPPLY 200W - PROCESSOR (FS200401) -
45-910-428 PROCESSOR PCB (MICROBUS 486DX MAT727) -
45-910-429 ANALOGUE INTERFACE PCB(PCAD12/16H)
45-910-430 SERIAL INTERFACE PCB, RS232/422 (PCSER4-ARCOM)
45-910-469 POWER SUPPLY - MONITOR -
45-910-471 DEFLECTION PCB (SCAN & VIDEO) -
45-975-0072-001 3.5 Floppy Disk Drive -
HRC-A305 MODULE - NMEA -



Nucleus 1 5000 & 6000 Display (HRC-A1, HRC-A2, HRC-A3, HRC-A4, HRC-A5)

К началу

Серийный номер Наименование Изображение
45-615-401-10 FUSE - 10A CERAMIC ORANGE/BLACK (L693/10) -

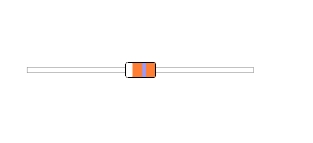

40-666-2059 DIODE - FAST SWITCHING (IN916)
40-666-2234 DIODE - RECTIFIER 1A 300V (IRC-IN4003)
40-666-2265 DIODE - RECTIFIER 1A 1000V (IN4007)
40-666-360-01 DIODE - VOLT REGULATOR 6.8%
40-666-371-01 DIODE - VOLT REGULATOR 8.2V NOM +/- 5% -
40-666-6102 TRANSISTOR - NPN (BXF84)
40-666-6207 TRANSISTOR - NPN (BC109C) -
45-546-1562-10 POT - 1K OHM (3386P) -
45-546-1562-50 POT - 5K OHM PRESET (3386P) -
45-612-226 SWITCH - SLIDE 2PDP C/O (T2225B) -
45-612-9005 LENS - RED 18x18 TRANSPARENT (0854-0602)
45-612-9006 LENS - YELLOW 18x18 TRANSPARENT (0854-0604)
45-612-9007 DIFFUSER/LEGEND PLATE INSERT (0854-0872)
45-612-9008 COVER SWITCH PROTECTOR 18x18 (0886-0003) -
45-613-202 SWITCH - PUSH BUTTON MOMENTARY (DEGAUSS) (0041-2311)
45-613-203 SWITCH - PUSH BUTTON, SPDT, LATCHING (ON/OFF) (0041-2361)
45-615-162-06 FUSE - ANTI - SURGE 1.25A 20mm (19195)
45-615-164-25 FUSE - 5A 5x20mm (S500)
45-615-165-10 FUSE - ANTI - SURGE CERAMIC 10A 20mm
45-625-2123 CRT - 28'' (A66EAK752X44) (replaces 45-647-196 M66EEU418X44)
45-628-917 LED - AXIAL RED (MV55AB)
45-647-197 CRT - 20'' (A51EAK01X01)
45-652-1008-16 REGULATOR - SWITCHING (L4970) -
45-652-3018 IC - DUAL COMPARATOR (LM393N) -

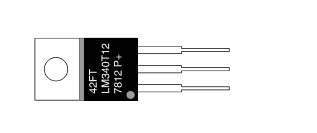

45-652-4085 1C - 1.5A 5V FIXED VOLT REGULATOR (LM7805CT)
45-656-1104 MEMORY CARD SRAM 32KB (CSC-032K-SM-03)
45-666-2451 DIODE DUAL RECTIFIER (20CTQ040) -
45-668-513 LOUDSPEAKER - MINIATURE CONE 8x40mm (248-476) -
45-671-0346-001 BATTERY - 3.6 V N1-MH (6000 SYSTEM PCB) -
45-676-361 FILTER - MAINS 10A 10ET1 120/250V 50-60Hz (F7313)
45-676-362 FILTER - MAINS 3A 3ET1 120/250V 50-60Hz (F7002)
45-677-110 POWER SUPPLY UNIT C/W METAL/WK
HRC-A184 Fan - PROCESSOR UNIT (5000) -
HRC-A185 FAN - POWER UNIT/RF HEAD (6000) -
HRC-A186 FAN - PROCESSOR UNIT -
HRC - A198 ARPA COMPUTER (inc.RDY - A622-3 & A623-3) -
HRC - A285 DEGAUSS COIL - (12H54208) -
HRC - A286 DEGAUSS COIL - (12H54214) 5000 -
HRC - A343 SYSTEM (5000A) PCB -



Nucleus 2 5000 Display (NNR-A22, NNR-A23, NNR-A24)

К началу

Серийный номер Наименование Изображение
45-613-4243 SWITCH, SUB MINIATURE, ON/OFF -
45-613-4244 SWITCH, SUB-MINIATURE, MOMENTARY -
45-615-165-10 FUSE - ANTI - SURGE CERAMIC 10A 20mm
45-615-180 FUSE - ANTISURGE 6.3 A -
45-647-201 CRT - 21'' (M51EHS211XM - PHILIPS / MERES )
45-671-321 LINE CONDITIONING UNIT, 15V -
45-671-322 LINE CONDITIONING UNIT, 230V -
45-675-0310-001 PCMCIA MEMORY CARD SRAM 256kB
45-676-376 FILTER - MAINS -
45-677-114 PSU (5000) -
45-881-114 TRACKERBALL (GK60-102-5000)
45-910-415 PUSH BUTTON PCB
CZZ-A146 SERIAL COMMS ADAPTOR PCB
NNR-1147 BEZEL MOULING -
NNR - A417 FITTING KIT - 5000 BASIC -
NNR - A418 SPEAKER
NNR - A436 CABLEFORM - EGAUSS
NNR - A439 SERIAL COMMS KIT -
NNR - A449 CABLEFORM -
NNR - A456 Remote Monitor Kit -
NNR - A466 CABLEFORM
NNR - A 468 System PCB (Subject to Availability)
NNR- A489 COMPASS LOAD PCB -
NNR-A5111 Nucleus 2 5000 ARPA AIS Upgrade Kit -
NNR-A5112 Nucleus 2 5000 ATA AIS Upgrade Kit -
NNR-A5116 Nucleus 2 5000 ARPA Retrofit -
NNR - A5117 Nucleus 2 5000 ATA Retrofit -
NNR-A5118 Nucleus 2 5000 EPA Retrofit -
NNR-A524 Sunhood fitting Kit -
NNR-A911-1 System PCB (Part of upgrade kits) -



Nucleus 2 6000 Display (NNR-A1, NNR-A2, NNR-A3)

К началу

Серийный номер Наименование Изображение
45-612-9005 LENS-RED 18x18 TRANSPARENT (0854-0602)
45-612-9006 LENS-YELLOW 18x18 TRANSPARENT (0854-0604)
45-612-9007 DIFFUSER/LEGEND PLATE INSERT (0854-0872)
45-613-202 SWITCH - PUSH BUTTON MOMENTARY (DEGAUSS) (0041-2311)
45-615-162-06 FUSE - ANTI - SURGE 1.25A 20mm (19195)
45-615-164-25 FUSE - 5A 5x20mm (S500)
45-625-2123 CRT - 28'' (A66EAK752X44)
45-666-6378 TRANSISTOR - LINE O/P (MJH16018) (6000) -
45-666-6380 TRANSISTOR - FRAME O/P (BDX53A) (6000)
45-671-322 LINE CONDITIONING UNIT, 230V -
45-676-361 FILTER - MAINS 10A 10ET1 120/250V 50-60Hz -
45-677-110 POWER SUPPLY UNIT C/W METAL/WK -
45-881-114 TRACKERBALL
45-910-419 DEFLECTION PCB (SCAN & VIDEO) -
45-910-516 PUSH BUTTON DART -
450910-539 PSU-MONITOR
HRC-A185 FAN-POWER UNIT/RF HEAD -
HRC-A202 FILTER - MAINS -
HRC-A457 FAN-MONITOR COOLING 24V DC -
NNR-1031 Rubber Mat -
NNR-A10-3 Remote desktop control pod - Serial -
NNR-A10-6 Remote desktop control pod - PS2 -

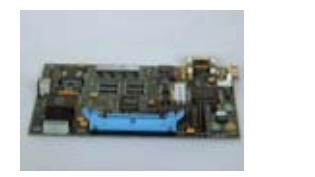

NNR-A128 ARPA3 COMPUTER (inc.HRC - A330 & ZM-177-15)
NNR-A141 POD TOP, RADAR -
NNR-A201 FAN
NNR-A387 CABLE -
NNR-A508 Slave Monitor output Kit -
NNR-A5109 Nucleus 2 6000 ARPA AIS Upgrade Kit -
NNR-A5110 Nucleus 2 6000 ATA AIS Upgrade Kit -
NNR-A5113 Nucleus 2 6000 ARPA AIS Retrofit -
NNR-A5114 Nucleus 2 6000 ATA Retrofit -
NNR-A5115 Nucleus 2 6000 EPA Retrofit -
NNR-A638 MAGNETIC AMPLIFIER MOD KIT  -
NNR-A911-1 System PCB -



Nucleus 3 5000 Display (NNR-A62, NNR-A63, NNR-A64)

К началу

Серийный номер Наименование Изображение
40-741-110 PLUG - CO-AX
45-613-4243 SWITCH, SUB MINIATURE, ON/OFF -
45-613-4244 SWITCH, SUB MINIATURE, MOMENTARY -
45-613-180 FUSE - ANTISURGE 6.3 A -
45-647-201 CRT - 21'' M51EHS211XM
45-675-0271 Map Storage Chip -
45-683-164 FAN - 24V DC -
45-683-165 Fan Guard Plastic -
45-950-0003-01 Trackerball -
55-100-0029 Anti Vibration Shock Mount -
55-100-0097-001 Dust Cover Nucleus -
55-100-0137-001 WRIST STRAP -
NNR-A371 DEFLECTION/VIDEO PCB -
NNR-A990 Low Radio Compass Kit -
NNR-A996 Input PCB 5000 -
ZM-1898 Dongle Nucleus 3 5000 ARPA -
ZM-1899 Dongle Nucleus 3 5000 ATA -
ZM-1900 Dongle Nucleus 3 5000 EPA -
ZM-1917 Software for Nucleus 3 -



Nucleus 3 6000 Display (NNR-A56, NNR-A57, NNR-A58)

К началу

Серийный номер Наименование Изображение
40-741-110 PLUG, CO-AX
45-612-9005 LENS-RED 18x18 TRANSPARENT (0854-0602)
45-612-9006 LENS-YELLOW 18x18 TRANSPARENT (0854-0604)
45-612-9007 DIFFUSER/LEGEND PLATE INSERT (0854-0872)
45-615-164-06 FUSE 1.25A 250V 5x20mm -
45-675-0271 Map Storage Chip -
45-683-172 Fan 24V -
45-910-516 PUSH BUTTON DART -
45-950-0003-001 TRAKERBALL -
45-980-0009-001 Power Supply 45KHz -
45-980-0010-001 Tube Base Board -
55-100-0038 Anti Vibration Shock Mount -
55-100-0087-001 Fan (Long) -
55-100-0088-001 Fan (Short) -
55-100-0097-002 Dust Cover Nucleus 3 6000 Display -
55-100-0137-001 WRIST STRAP -
85-290-0023-001 Cable PSU to Scan -
85-290-0024-001 Cable scan to Video Base -
85-290-0025-001 Cable scan to tube Base -
85-290-0026-001 Cable scan to Scan Coils -
85-290-0027-001 Degauss Coil -
HRC-A202 FILTER - MAINS -
NNR-1020 Control Pod Top -
NNR-1031 Rubber Mat -
NNR-A10-3-ABA Remote desktop control pod - Serial -
NNR-A10-6-ABA Remote desktop control pod - PS2 -
NNR-A387 CABLE -
NNR-A5101 Ribban Cable - 50 Way -
NNR-A910 Input PCB -
ZM-1906 Dongle Nucleus 3 6000 ARPA  -
ZM-1907 Dongle Nucleus 3 6000 ATA -
ZM-1908 Dongle Nucleus 3 6000 EPA -
ZM - 1917 Software for Nucleus 3 -


Radar Interswitch Unit & Transceiver Interswitch Unit NNR-A55(RIU), NNR-A66(TIU)
К началу

Серийный номер Наименование Изображение
45-600-0033-001 Switch Rocker 10A, 250V AC -
45-677-124 POWER SUPPLY, TYPE MK4TX -
45-680-003 MAINS FILTER, 6A, TYPE 6ET1 -
NNR-A1004 RIU Terminal PCB -
NNR-A5018 CABLE -
NNR-A5019 CABLE ASEMBLY, RIBBON -
NNR-A5129 CAN adapter fitting kit cable -
NNR-A979 VIDEO/SYNC SWITCHING PCB -
NNR-A980 RIU PROCESSOR PCB -
NNR-A981 CAN adapter PCB -



SART 9-1M (LO-KATA) SRT-1

К началу

Серийный номер Наименование Изображение
35-781-2421 ''O'' RING - 2.62x33 DIA (125-3957) -
LOK-1019 BATTERY CHANGE KIT - SART USER -
SRT - 1059 C SPANNER - SINGLE USE
SRT-A106 BATTERY PACK - SART DEALER



Soft Start Unit (CZZ-A14, CZZ-A14-2)

К началу

Серийный номер Наименование Изображение
45-613-4205 KEY SWITCH, 2A, 250V , TYPE 146-811, RS -
45-615-177 Fuse Ceramic 5.0A -
45-615-178 Fuse Ceramic 6.25A -
45-617-1154 Contactor SC 24V DC (28-141100-24 MTE) -
45-628-934 LED - INDICATOR  -
45-690-0025-001 POWER SUPPLY ZWS/ZWD -
45-741-1934 Plug UHF -
45-741-1939 UHF Reducing Adaptor -
45-741-1943 uhf Cable jack -
CZZ-A14 3 PHASE SOFT START UNIT -
CZZ-A14-2 3 ph SOFT START + PSU -
CZZ-A159 3ph SWITCHING SOFT SART PCB -
CZZ-A162 Neon -
CZZ-A163 Neon(mains) -
CZZ-A24 Power supply Kit -



 Voyage Data Recorder & Ancillery Items (VDR-A1)

К началу

Серийный номер Наименование Изображение
45-613-4250 SWITCH, MINIATURE, DPST, ROCKER, BLACK, ON/OFF
45-671-0347-001 Battery, Sealed (12V, 7Ah) Priced Each, 4 Required -
45-676-362 FILTER MAINS 3A 3ET1
45-975-0065-001 16 Channel Serial Card -
45-975-0067-001 Power Supply & Battery Charger -
45-975-0068-001 128Mb SDram -
45-975-0072-001 3.5 Floppy Disk Drive -
45-975-0079-001 Hard Drive Caddy adapter with Fan -
45-975-0082-001 IDE CD ROM Drive -
45-975-0093-001 512Mb RAM -
45-975-0092-001 USB Network cable -
45-975-0104-001 Processor Pentium -
55-100-0106-001 Motherboard (SKT370 QDI) -
85-290-0031-001 Serial Capture card Cableform -
NNR-1068 Filter air -
VDR-A101 Audio/Video Capture -
VDR-A105 Interface PCB -
VDR-A107 White Box -
VDR-A121 Status and Alarm PCB -
VDR-A136 Fan -
VDR-A4 Data Interface Unit -
VDR-A6 Internal Microphone Unit
VDR-A5-ABAA Crash Survivable Module -
VDR-A9 Remote Status Alarm Module -



Ships Security Alert System

К началу

Серийный номер Наименование Изображение
CWH-724 Watch Alarm Resert Button Panel Mount -
DSAS-100 Complete System -
DSAS-200 Alarm Box -
DSAS DSAS Manual -





Возврат к списку
