Каталог ЗИП KELVIN HUGHES (Часть 1)

22.01.2016

I.Автоматическая Идентификационная Система  R3 (АИС)

II.Автоматическая Идентификационная Система  R4 (АИС)

III.Блок двойного подключения (HRC-A9)

IV. Дисплей ECDIS 5000 & 6000  (NNR-A40-* & NNR-44-*)

V. Эхолот (GDS101)

VI.Гирокомпас (CMZ700)

VII.Husun ГМССБ (2000 series)

VIII. Husun ГМССБ(4000 series)

IX.Инструкции

X. Дисплей  Manta Radar  (2000 & 2300)   FSD-A3 (20” Консоль), FSD-A4 (23” Desktop), FSD-A6 (23” Консоль), FSD-A7 (17” Рабочий стол), FSD-A9 (17” Консоль)

XI.Процессор NNR-A59 (Процессор), NNR-A60 (Процессор), NNR-A61 (Процессор)

XII. Дисплей Manta ECDIS FSD-A5(23” Дисплей), FSD-A8(17” Дисплей)

XIII. Процессор Manta ECDIS  VDR-A20(Процессор)

XIV.Mk 4 Вращающий механизм (S’ Band) (CAE-A1-1)

XV.Mk 4 Вращающий механизм (X’ Band) (CAE-A10)
  • Для того, чтобы сделать заказ на запчасти KELVIN HUGHES, обратитесь к менеджеру по почте sales@cirspb.ru или в сервисный отдел service@сirspb.ru
  • По вопросам обращаться по телефонам: в Санкт-Петербурге (+7 812) 679-09-10 и +79045531441,
  • в Петрозаводске (+7 8142) 57-80-30 и (+7 8142) 57-00-03.


Автоматическая идентификационная система R3 (АИС)

К началу

Серийный номер Наименование Изображение
IBS-1040 Antenna Mounting Pole -
LE-727010 MX521 DGPS Smart Antenna -
LE-9525-200-75070 LCD SCreen -
LE-9525-200-80030 R3 AIS MX420 Display (MDK) -
SA-7000-000-063 R3 AIS Transponder -
SA-7001-000-077 Transponder VHF Antenna -
SA-7001-000-078 Transponder GPS Antenna -



Автоматическая идентификационная система R4 (АИС)

К началу

Серийный номер Наименование Изображение
IBS-1040 Antenna Mounting Pole -
LE-727010 MX521 DGPS Smart Antenna -
SA-7000-100-165 R4 Pre-cabled Junction Box -
SA-7001-000-077 Transponder VHF Antenna -
SA-7001-000-078 Transponder GPS Antenna -
SA-7001-000-252 R4 AIS Transponder -
SA-7001-000-253 R4 AIS Displey (MKD) -
SA-7001-000-261 R4 AIS Display and Transponder, complete with cables and bracket -



Блок двойного внутреннего подключения (HRC-A9)

К началу

Серийный номер Наименование Изображение
40-741-110 PLUG, CO-AX Каталог ЗИП KELVIN HUGHES (Часть 1)
45-241-1159 Nut Cover Black -
45-241-1160 Knob 14.5 mm -
45-241-945 Cap Black 14.55 mm -
45-615-164-15 FUSE LINK - GLASS 3.15A (S500) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-615-164-25 FUSE - 5A 5x20 mm (S500) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-615-410-31 FUSE LINK - GLASS 5x20 mm 3.15A (S500) -
5445-926 R.F.I Copper Strip -
HRC-A103 DUAL INTERSWITCH PCB  -
HRC-A259 RELAY UNIT-MAINS -
HRC-A275 Switch & Cableform - Main PCB -



Дисплей ECDIS 5000&6000 (NNR-A40-* & NNR-44-*)

К началу

Серийный номер Наименование Изображение
45-613-219 KEYBOARD PANEL Каталог ЗИП KELVIN HUGHES (Часть 1)
45-613-4250 SWITCH, MINATURE, DPST, ROCKER, BLACK, ON/OFF Каталог ЗИП KELVIN HUGHES (Часть 1)

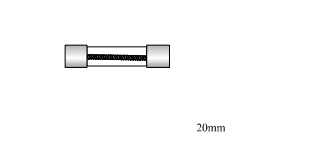

45-615-162-20 FUSE LINK - 2A ANTI-SURGE Каталог ЗИП KELVIN HUGHES (Часть 1)
45-615-164-12 FUSE LINK - 2.5A 250V 5x20 mm (S500) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-615-164-25 FUSE LINK - 5A 5x20 mm (S500) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-625-0009-001 CRT, 21', M51LRF281X21, MATSUSHITA -
45-625-2121 INDICATOR LAMP, 12V -
45-647-202 CRT - 21' (M51KYY501X52 - PANASONIC) (5000) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-676-362 FILTER - MAINS 3A #ET1 120/250V 50-60Hz (F7002) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-881-113 KEYBOARD - SMALL (G84-4100PAG/030) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-910-415 PUSH BUTTON PCB Каталог ЗИП KELVIN HUGHES (Часть 1)
45-910-523 CD ROM DRIVE - SCSI (6000) Каталог ЗИП KELVIN HUGHES (Часть 1)

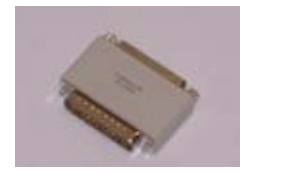

45-910-546 DONGLE Каталог ЗИП KELVIN HUGHES (Часть 1)
45-910-590 SERIAL INTERFACE I/08+SPECIALIX PCB -
45-910-598 PSU - AUTO RANGING INPUT (TYPE LPQ-152) (RS192-1172) (5000) -
45-910-599 3.5' FLOPPY DISK DRIVE, BLACK FASCIA, Pt No. FD-235GF/HF/HG -
45-910-600 CD ROM DRIVE, 6X, SUPER SLIM, BLACK FASCIA, Pt No. CD-38-E -
45-910-608 BACKPLANE, Pt No BAK8344I2P-PMG, MICROBUS -
45-910-609 PROCESSOR PCB (MAT 840) 200MHz (MFD) -
45-910-624 17' Monitor -
45-950-0002 TRACKBALL - (RB2 807) -
45-975-0017 ETHERNET PCB (PCI) 32Bit -
45-975-0030-001 ETHERNET PCB (ISA) -
45-975-0059-001 3.5' Hard Disk Drive -
HRC-A202 FILTER - MAINS -
HRC-A502 FAN, 60 x 60mm, 24V DC Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A115-2 MONITOR PSU PCB Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A116 DEFLECTION PCB Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A117-2 VIDEO AMPLIFIER Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A135 TUBEBASE PCB (use with CRT 45-647-199) Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A135-4 TUBEBASE PCB (use with CRT 45-647-202) -
NNR-A201 FAN Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A224 POWER SUPPLY (6000) PCB -
NNR-A255 Control PCB -
NNR-A232 INTERFACE (6000) PCB Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A269 REMOTE POTENTIOMETER PCB -
NNR-A279 RIBBON CABLE - PANEL (6000) -
NNR-A297 RIBBON CABLE - CD ROM (6000) -
NNR-A303 DAC/BLEED LEAD KIT (PCB) Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A338 COMPASS/LOG (SYNC, PULSE, STEP) PCB -
NNR-A343 CABLEFORM - TRACKEBALL (6000) -
NNR-A376 FAN Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A509 RADAR INTERLAYPCB (RIP) (6000) -
NNR-A5125 Ecdis 6000 TFT Kit (Replacement For 45-647-199 Obsolete CRT) -

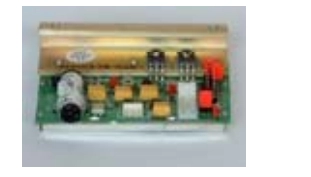

NNR-A536 MAGNETIC AMPLIFIER PCB(6000) (replaces NNR-A166-* & A449-*) Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A575 INTERFACE PCB(5000) Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A589 M.I.S.C. (Multi Input-Output Serial Card) PCB Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A607 SCREEN CONTROL UNIT -
NNR-A620-ACAC DEFLECTION PCB/PSU PCB(inc.NNR-A115-2,A116) (5000) -
NNR-A638 MAGNETIC AMPLIFIER MOD KIT - (inc. NNM-A536, A628, A629) -
NNR-A647 CABLEFORM, VIDEO Каталог ЗИП KELVIN HUGHES (Часть 1)

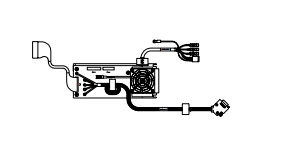

NNR-A668 Cable Form -
NNR-A688 VIDEO & FAN BRACKET PCB (5000) Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A688-1 VIDEO PCB(6000) -
NNR-A781 CABLE, VIDEO TO DEFLECTION -
NNR-A802 FAN -
NNR-A920-1 TUBE, BASE, HIGH RESOLUTION PCB -
VDR-A4 Data Interface Unit -
ZM-1816 Software Upgrade to accept C-Map & AIS - ECDIS (5000 & 6000) -
ZM-1846 Boot Disc - ECDIS (DOS) (5000 & 6000) -



Эхолот (GDS101)

К началу

Серийный номер Наименование Изображение
45-761-103 5m Parallel cable -
45-761-105 10m Parallel Printer Cable -
CP-26583 Remote Dimmer for 4891 Digital Indicators -
CP-74531 4894 Digital Pepeater Terminal Box -
HP-3820C Inkjet Printer -
RS-293-2656 110/220V Transformer -
SK-EN301K IR 301 Digital Depth Indicatior -
SK-EN30DIM IR 30 DIM Depth Repeater Remote Dimmer -
SK-ENS518 Transducer Selector Switch  -
SK-ETN050BEL 50Khz Transducer with 25m Cable & JB -
SK-ETN050BELX 50Khz Transducer with 40m Cable & JB -
SK-ETN200F 2000Khz Transducer with 25m Cable & JB -
SK-ETN200FS 2000Khz Transducer with 25m Cable & JB -
SK-ETN200FX 2000Khz Transducer with 40m Cable & JB -
SK-ETNSLJ Gate Valve (Stainless Steel) -
SK-ETNST Transducer Tan (DNV approved) -
SK-GDS101U Navigation Echo Sounder Displey with LCD Readout -
SK-ZAA-01013 GDS High Resolution LCD -
SK-ZZA-01118 Overlay -
SK-ZZJ-02019 Fan Blower -
SK-ZZJ-02045  Front Window 2mm -
SK-ZZR-010001 Backlight LM64P62 -
SK-ZZR-02002 Fuse 5x20, 3.15 A Slow Blow (24DC) -
SK-ZZR-02011 Fuse 5x20, 0.5 A Slow Blow (220VAC) -
SK-ZZR-02012 Fuse 5x20, 1A Slow Blow (110VAC) -
SK-ZZS-01116 Transformer 110/220V -
SK-ZZW-01005 Flash Memory (x3) -
SK-ZZZ-010000 Terminal PCB -
SK-ZZZ-010001 Keyboard PCB -
SK-ZZZ-010002 Input/Output PCB -
SK-ZZZ-010006 Mother Board PCB -
SK-ZZZ-010018 Ram 4MB PCB -
SK-ZZZ-010019 CPU/VGA PCB - PCA-6135 -
SK-ZZZ-05071 Transformer PCB -



Гирокомпас (CMZ700)

К началу

Серийный номер Наименование Изображение
YO-1G124G02301 INJECTOR 20cc -
YO-1G124G02401 INJECTOR 2.5cc -
YO-V8109PN MERCURY -
YO-V8109PQ SPHERE SUPPORT -
YO-V8109PT INSULATOR -
YO-V8114KN CONTAINER BASE -
YO-V8114KQ METER CUP -
YO-V8114MK FUNNEL -
YO-V8811AQ Lamp -

Husun ГМССБ (2000 series)

К началу

Серийный номер Наименование Изображение
14-870 CAPACITOR (C1-3 TO C6-3) -
22-512 TRANSFORMER - MAINS -
22-513 TRANSFORMER - MAINS -
225709 KEYBOARD FOIL -
226302 FRONT FOIL -
227417 FRONT FOIL -
25-147 DIODE (1N4448) -
29-122 TRANSISTOR (AFBD645) -
29-266 TRANSISTOR - POWER (PAIR) -
29-267 TRANSISTOR - POWER (PAIR) -
29-268 TRANSISTOR - POWER (PAIR) -
29-402 TRANSISTOR - POWER (IRF540) -
31-484 AF POWER AMP (TDA2030H) -
32-450 POWER UNIT (900) -
46-010 TEELEPHONE CARTRIDGE -
46-040 LOUD SPEAKER -
46-052 LOUD SPEAKER -
46-053 LOUD SPEAKER -
48-570 SEAL 1/4 BOX -
55-150 MAIN PROCESSOR PCB -
55-151 FILTER BOARD -
60-010 MOTOR & GEARBOX -
60-100 FAN - 24V -
600009 RECEIVER 100 -
600012 RECEIVER SYNTHESIZER (200) -
600013 TRANSMITTER POWER AMP (400 & 500) -
600100 TRANSMITTER EXCITER (300) -
600416 VOLTAGE REGULATOR -
600792 CONTROL UNIT (MODULE 2) -
601137 TONE DECODE PCB -
601142 RECEIVER PCB -
601198 POWER SUPPLY (MODULE 1) -
625447 KEYBOARD -
625448 TRANSMITTER/RECEIVER MODULE -
625450 INTERFACE MODULE -
625451 SYNTESE MODULE -
625631 RECEIVER (MODULE 1) -
625632 RECEIVER FRONT END (MODULE 2) -
625635 PROCESSOR (MODULE 5) -
625636 KEYBOARD (MODULE 6) -
625637 DISPLAY (MODULE 7) -
625638 POWER (MODULE 8) -
625641 POWER AMP (MODULE 1) -
625642 OUTPUT FILTER (MODULE 2) -
625643 TRANSMITTER PROCESSOR (MODULE 3) -
625644 POWER SYPPLY (MODULE 4) -
625651 MAIN BOARD (MODULE 1) -
625653 CONNECTION & INTERFACE (MODULE 3) -
625980 CONNECTION - THYRISTER UNIT -
626301 RECEIVER (MODULE 1) -
626408 TRANSMITTER PROCESSOR (MODULE 8) -
626409 POWER SUPPLY (MODULE 9) -
626410 AF AMPLIFIER (MODULE 10) -
626411 POWER AMPLIFIER (MODULE 11) -
626412 COMBINER (MODULE 12) -
626421 INPUT FILTER (MODULE 1) -
626422 REGULATOR - 28V & 42V (MODULE 2) -
626423 CONVERTOR CONTROLLER (MODULE 4) -
626424 CONVERTOR (MODULE 4) -
626431 REGULATOR - 28V (MODULE 1) -
626432 REGULATOR - 42V (MODULE 2) -
626641 AERIAL CURRENT DETECTOR -
626701 INTERFACE (MODULE 1) -
626702 RF (MODULE 2) -
626703 DIV & LOOP FILTER (3) -
626704 I/F MODULE -
626705 KEYBOARD (MODULE 5) -
626706 ANTENNA SWITCH -
626941 INTERFACE MODULE 1 (MODULE 1) -
626942 MICRO PROCESSOR (MODULE 2) -
626943 RECEIVER (MODULE 3) -
626944 DISPLAY - PRINT -
626945 BUS INTERFACE -
627147 FILTER SWITCH (MODULE 7) -
627746 INTERFACE UNIT (600) -
627747 KEYBOARD UNIT (700) -
627749 FILTER UNIT (500) -
700960 MICROPHONE -
702696 SEAL -
725772 MICRO TELEPHONE -
726233 HANDSET HOLDER -
726308 POWER SUPPLY -
726401 FILTER UNIT (MODULE 1) -
726402 FILTER UNIT (MODULE 2) -
726403 FILTER UNIT (MODULE 3) -
726404 FILTER UNIT (MODULE 4) -
726405 FILTER UNIT (MODULE 5) -
726406 FILTER UNIT (MODULE 6) -
727070 SYNTHESISER (MODULE 3) -
727071 SYNTHESISER -
727501 HANDSET & CRADLE -
729199 SERVICE KIT -
80311060 3110 PORTABLE VHF HANDSET -
803901 BATTERY PACK - 700mAh RECHARGEABLE -
8039026 BATTERY - 1200mA/u RECHARGEABLE -
803905 BATTERY PACK - 5000mAh LITHIUM -
80391160 BATTERY CHARGER (STANDARD) -
8039416 VHF AERIAL -
80434510 Inmarsat Handset (Black) -
80434560 Sat B Control Handset (4345) -
8112526 OKI 1252A Microline printer -

Husun ГМССБ (4000 series)

К началу

Серийный номер Наименование Изображение
62-295 AV7 VHF Antenna -
80042060 N420 DC Power Supply Unit (24-12VDC) -
80480061 4800 VHF Simplex Transceiver -
80480161 4801 VHF/DSC Simplex Transceiver -
80490061 4900 Remote Handset -
80490161 4901 Remote DSC Handset -
80499161 4991 Remote Handset Connection Box -
80499601 H4996 VDR Interface Box for 4822 & 4722 -
91472260 4722 VHF/DSC Duplex Tx/Rx with handset & bracket -
91482260 4722 VHF/DSC Simplex Tx/Rx with handset & bracket -
62-294 AT-82 8.2m Transmit Whip Aerial -
62-297 AR-55T 5.4m Receive Whip Aerial -
80450060 4500 HF Control Unit -
80452560 4525 Antenna Tunning Unit -
80455560 4555 Antenna Tuning Unit -
80465011 4650 Tx Power Supply -
80465211 4652 Power Supply & Battery Charger -
91452061 4520 250W PEP SSB Transceiver & Power Supply -
91455061 4550 500W PEP SSB Transceiver  -
SH-COMAR82 AT-82 8.2m Receive Whip Aerial -
55-747 1605 Sat-C Aerial  -
82209510 2095C/GPS Inmarsat-C Tranceiver with inbuilt GPS RX -
83209510 2095C Inmarsat-C Transceiver -
84160460 H1604D Remote Sat C Alarm with EGC Printer -
47-825 Telex Rolls for Printer -
82125260 125B NBDP Printer (24V) -
85464110 KB461E Keyboard for DT464E -
85464661 DT464E Data Terminal for Sat-C or Telex -
E62-321 Ribbon Cassette for Printer -
733600 GMDSS Connection Box -
80119460 N163S Power Supply (24V DC) -
80436560 4365 Remote Alarm Unit -
80468060 4680 Battery Panel -
SO-SL115 Sealed Lead Acid Gel Battery 12V, 115A/H -
SO-SL55 Sealed Lead Acid Gel Battery 12V, 55A/H -
SP-55-359 850mAH NICad Battery -
SP-55-360 2900mAH Lithium Battery -
SP-8033000008 3300 Portable GMDSS VHF Portable Tx/Rx -
SP-8033210001 3321 Single-Way Battery Charger -
60-231 2095C Instruction Manual -
60-232 2095C Operation Manual -
B4500GB6 4500 Operation Manual -
B4722GB6 4722 Operation Manual -
B4822GB6 4822 Operation Manual -
B4900GB6 4900 Operation Manual -
B4901GB6 4901 Operation Manual -
M1252GB6 H1252 Technical Manual -
M4365GB6 4365 Technical Manual -
M4520GB6 4520 Technical Manual -
M4690COM CO4690-4695 Technical Manual -
M4722GB6 4722 Installation Manual -
M4800GB6 4800 Installation Manual -
M4822GB6 4822 Installation Manual -
SP-B3300GB0 3300 Instruction Manual -
1344-720 4 Core Signal Cable (0.5mm) per metre -
1344-721 6 Core Signal Cable (0.5mm) per metre -
77-176 2x2 Core Signal Cable (0.5mm) per metre -
77-177 5x2 Core Signal Cable (0.5mm) per metre -
E62-021 H22 160cm Insulator -
E62-230 100mm wide Copper Earthing Strip per metre -
E62-283 1'' Shackle for H22 -
E62-415 RG214/U Co-axial Cable per metre -
E77-508 RG213/U Co-axial Cable per metre -
E77-955 Aerial Feeder Wire per metre -
E78-660 Battery Terminal (+) -
E78-661 Battery Terminal (-) -
H2000091 10x2 Core Signal Cable (0.5mm) per metre -
RS-124-8922 TNC Plug -
RS-257-2917 PL259 Co-axial Plug -
RS-295-6630 N type Connector -
1C-905-03 FRP Passive Whip Antenna -
1C-915-06 Navtex Receiver with Cyrillic Alphabet Support -
1C-913-13 Pack of 8 paper rolls -
E-77-508 RG213/U Co-axial Cable per metre -
RS-257-2917 PL259 Co-axial plug -

Инструкции

К началу

Серийный номер Наименование Изображение
60-231 2095C Instruction Manual -
60-231 2095C Operation Manual -
B4500GB6 4500 Operation Manual -
B$722GB6 4722 Operation Manual -
B4822GB6 4822 Operation Manual -
B4900GB6 4900 Operation Manual -
B4901GB6 4901 Operation Manual -
KH-1200-01 Nucleus 1 5000 & 6000 - Operation & Maintenance Manual -
KH-1220 MK4 Transceiver & Array Manual (inst.comm.maint.tech) -
KH-1203 MK5 Transceiver Manual (inst.comm.maint.tech) -
KH-1204 MK4, MK5, MK6 Array (inst.comm.tech) -
KH-1205 Dual Interswitch Unit Manual (DIU) (ops.inst.serv.tech) -
KH-1206 Nucleus 1 5000 & 6000 - Installation & Commissioning Manual -
KH-1222 MFD - Operation Manual -
KH-1223 MFD - Technical Manual (inst.comm.maint.spec) -
KH-1224 MFD Base - Technical & Maintenance Manual -
KH-1225 Planning Workstation - Operation Manual -
KH-1226 Conning (MFD) Display - Technical Manual (inst.comm.main.spec) -
KH-1227 Nucleus 2 5000 (ECDIS & MFD) Workstation (inst.comm.maint) -
KH-1228 Nucleus 2 5000 & 6000 ECDIS -
KH-1250 MK6 Transceiver Manual (inst.comm.maint.tech) -
KH-1251 Mk 7 X' Band Technical Manual -
KH-1252 MK 7 S' Band Technical Manual -
KH-1254 MK4 (CAE-A12-20) Upmast Transceiver Technical Manual -
KH-1270 MK4 Downmast Transceiver + MK5 Turning Mechanism -
KH-1280 Voyage Data Recorder (VDR) Manual -
KH-1300 Nucleus 2 6000 - Operation Manual -
KH-1301 ARPA 3 - Technical Manual -
KH-1302 Nucleus 2 6000 - Technical Manual -
KH-1303 Nucleus 2 6000 - Installation Manual (inst.comm) -
KH-1304 Nucleus 2 5000 - Installation Manual (inst.comm) -
KH-1305 Nucleus 2 5000 - Technical Manual -
KH-2000 Nucleus 1 & 2 5000 & 6000 - Maintenance Manual -
KH-2001 Nucleus 1 & 2 5000 & 6000 - Maintenance Manual (inst.comm) -
KH-2002 Nucleus 1 5000 & 6000 - Technical Manual -
KH-2003 Nucleus 2 5000 - Technical Manual -
KH-2004 Nucleus 2 6000 - Technical Manual -
KH-2005 Nucleus 1 & 2 5000 & 6000 - Options Manual -
KH-2020 Nucleus 3 System Manual -
KH-913 River Radar Manual -
M1252GB6 H1252 Technical Manual -
M4365GB6 4365 Technical Manual -
M4520GB6 4520 Technical Manual -
M4690COM CO4690-4695 Technical Manual -
M4722GB6 4722 Installation Manual -
M4800GB6 4800 Installation Manual -
M4822GB6 4822 Installation Manual  -
SP-B3300GB0 3300 Instruction Manual -



Manta Radar Дисплей (2000 & 2300)
FSD-A3 (20” Консоль), FSD-A4 (23” Рабочий стол),
FSD-A6 (23” Консоль), FSD-A7 (17” Рабочий стол),
FSD-A9 (17” Консоль)

К началу
Серийный номер Наименование Изображение
45-600-0046-001 Switch Rocker (On/Off) -
45-600-0046-001 Switch Momentary -
45-625-0004-001 DRIVER, 20.1'' LCD DISPLAY DRIVER PCB -
45-625-0019-001 23.1'' Flat Panel Display -
45-625-0021-001 20'' Flat Screen Display -
45-950-0008-001 Trackerball -
FSD-A101 Brilliance Control PCB -
FSD-A127 Cableform Backlight Adjust -
NNr-A10-6-BCA Remote desktop control pod - PS2 -
NTD-1054 Trackerball Button (Left) -
NTD-1055 Trackerball Button (Middle) -
NTD-1056 Trackerball Button (Right) -
NTD-A134 Trackerball 3 Button PCB -
NTD-A137 POWER AND TEMPERATURE CONTROL PCB -
NTD-A204 20.1'' LCD DISPLAY BACKLIGHT PCB -



 Процессор NNR-A59 (Процессор), NNR-A60 (Процессор), NNR-A61 (Процессор)

К началу

Серийный номер Наименование Изображение
45-615-164-25 FUSE - 5A 5x20mm (S500) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-675-0271 Map Storage Chip (IC32) -
45-676-361 FILTER - MAINS 10A 10ET1 120/250V 50-60Hz (F7313)  Каталог ЗИП KELVIN HUGHES (Часть 1)
45-677-110 POWER SUPPLY UNIT C/W METAL/WK Каталог ЗИП KELVIN HUGHES (Часть 1)
45-680-0066-001 Mains Filter -
45-683-157 Fan Guard -
45-683-172 Fan 24V -
45-690-0006-001 PSU, 125W, 12V@10.5A -
NNR-1068 Filter, Air -
NNR-A128 ARPA3 COMPUTER (inc.HRC-A330 & ZM-1715) Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A156 CABLE - 50 WAY RIBBON Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A215-1 Split Input Processor -
NNR-A264 Cableform -
NNR-A320 Cableform -
NNR-A910 Input PCB -
NNR-A911 System pcb Каталог ЗИП KELVIN HUGHES (Часть 1)
NNR-A996 Input PCB 5000 -
ZM-1906 Dongle Nucleus 3 6000 ARPA (Uses 45-925-01-87-001) -
ZM-1907 Dongle Nucleus 3 6000 ATA (Uses 45-925-0187-001) -
ZM-1908 Dongle Nucleus 3 6000 EPA (Uses 45-925-0187-001) -
ZM-1917 Software foe Nucleus 3 -



 Дисплей Manta ECDIS

FSD-A5(23” Дисплей), FSD-A8(17”Дисплей)

К началу

Серийный номер Наименование Изображение
45-600-0046-001 Switch Pocker (On/Off) -
45-600-0049-001 Switch Momentary -
45-625-0004-001 DRIVER, 20.1'' LCD DISPLAY DRIVER PCB -
45-625-0019-001 23.1'' Flat Panel Display -
45-625-0021-001 20'' Flat Screen Display -
45-680-0066-001 Mains Filter -
45-690-0006-001 PSU, 125W, 12V 10.5A -
45-950-0008-001 Trackerball -
FSD-A101 Brilliance Control PCB -
FSD-A127 Cableform Backlight Adjust -
NNR-1068 Filter, Air -
NTD-1054 Trackerball Button (Left) -
NTD-1055 Trackerball Button (Middle) -
NTD-1056 Trackerball Button (Right) -
NTD-A134 Trackerball 3 Button PCB -
NTD-A137 POWER AND TEMPERATURE CONTROL PCB -
NTD-A204 20.1'' LCD DISPLAY BACKLIGHT PCB -
ZM-1816
 Software Upgrade to accept C-Map& AIS - ECDIS (5000 & 6000) -

XIII. Процессор Manta ECDIS  VDR-A20(Процессор)
К началу

Серийный номер Наименование Изображение
45-613-4250 SWITCH, MINATURE, DPST, ROCKER, BLACK, ON/OFF Каталог ЗИП KELVIN HUGHES (Часть 1)
45-676-362 FILTER - MAINS 3A 3ET1 120/250V 50-60Hz (F7002) Каталог ЗИП KELVIN HUGHES (Часть 1)
45-975-0065-001 16 Channel Serial Card -
45-975-0067-001
Power Supply & Battery Charger -
45-975-0072-001
3.5 Floppy Disk Drive -
45-975-0079-001
Hard Drive Caddy adapter with Fan -
45-975-0082-001
IDE CD ROM Drive -
45-975-0093-001
512Mb RAM -
45-975-0104-001
Processor Pentium -
45-975-0106-001
Motherboard (SKT370 QDI) -
55-100-0064-001
Deep Channel Card Guide -
85-290-0031-001
Serial Capture card Cableform -
FSD-A155
Audio System Failure PCB -
NNR-A509
RADAR INTERLAYPCB(RIP) (6000) -
VDR-A105
Interface PCB -
VDR-A120
Ribbon Cable For Hard Drive -
 VDR-A121Status and Alarm PCB -
 VDR-A136Fan -
 VDR-A145Cableform RIP PCB
 -
 VDR-A146CO-AX Cable (Sync) -
 VDR-A147CO-AX Cable (Video)
 -

XIV.Mk 4 Вращающий механизм (S’ Band) (CAE-A1-1)
К началу

Серийный номер Наименование Изображение
45-211-152
MOTOR & GEARBOX (LESS ROT JOINT) -
45-682-2006
MOTOR - ACКаталог ЗИП KELVIN HUGHES (Часть 1)
5763-002OIL - "KLUBER" SYNTH D220 (1 LITRE) -
CAE-1027
DISC - OPTICAL AZIMUTHКаталог ЗИП KELVIN HUGHES (Часть 1)
CAE-A106-2OPTO AZIMUTH PCB -
CAE-A110
MONITOR ARM-
CAE-A122JOINT - ROTATING Каталог ЗИП KELVIN HUGHES (Часть 1)
CAE-A134
Array FEED-
CAE-A157SEAL & DRIP TRAY -
CAE-A26
SOFT START UNIT-
LPA-A1-ACAALow Profile Array - S-BAND for use with Mk4 Gearbox -
TCR-A161-2
ROTATING JOINT &TRANSITION-
TCR-A188-2JOINT-ROTATING (use with TCR-A197) -
TCR-A197
TRANSITION (use with TCR-A188-2)-
XX-5000-243SEAL - OIL DOUBLE LIP (52x35x7) FLEXFEED (To Be Supplied in Pairs) -
XX-5000-276 SEAL - OIL DOUBLE LIP (65x50x8) MOTOR (To Be Supplied in Pairs-

XV.Mk 4 Вращающий механизм (X’ Band) (CAE-A10)
К началу

Серийный номер Наименование Изображение
40-745-506
LAMP HOLDERКаталог ЗИП KELVIN HUGHES (Часть 1)
45-681-144
MOTOR - 24V DC-
45-681-905BRUSH - FOR MOTOR 45-681-144 -
85-487-163
BELT - HTD 5mm (500-5M-15) MOTOR/AERIAL DRIVEКаталог ЗИП KELVIN HUGHES (Часть 1)
CAE-1027DISC - OPTICAL AZIMUTH Каталог ЗИП KELVIN HUGHES (Часть 1)
CAE-1108
GASKET - COVER (LARGE)-
CAE-1109Bolt -
CAE-1110
Washer-
CAE-1218Window - 2.4m (Array) -
CAE-1223
Window (1.3M)-
CAE-1528COVER - TX MONITOR ARM (AMBER) -
CAE-4046
Window (1.8M)-
CAE-A105AERIAL FEED
-
CAE-A106-2OPTO AZIMUTH PCB-
CAE-A109MONITOR ARM -
CAE-A120MOTOR DAMPING UNIT-
CAE-A13-2Array - X' Band (1.8m/6ft)
-
CAE-A154AERIAL FEED
-
CAE-A25Array - X' Band (2.4m/7ft6in)
-
CAE-A294Gearbox (Mk4 X' Band)
-
DMR-2166
Neon Holder
-
DMR-2169Spring
-
DMR-2170Washer
-
RAE-A138ROTATING JOINT
-
ZM-1059
NEON (Lamp) (ZV-7936 SELECTED)Каталог ЗИП KELVIN HUGHES (Часть 1)

Возврат к списку
